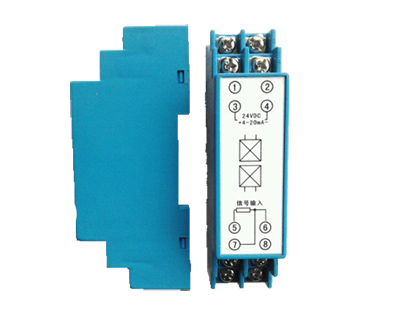

WXZJ-T30B series rail temperature module is used as temperature-sensing element of thermocouple measurement. It supports 4 kinds of thermal resistance, PT50 , PT100 , PT500 , PT1000, and 8 kinds of thermocouple, E, J, B, K, N, R, S, T. It has features of high accuracy, excellent stability, free of maintenance. And it is widely applied in various industrial control fields.

Technical index:

voltage: DC10V～32V;

output signal: 4-20mA;

remote management through manual operator and PC unit;

interior Pt100;

cold junction compensation accuracy: 0.5℃;

damping : 0-32 seconds, adjustable

data refresh rate: 4 times /S;

stability: ±0.2%/year

working temperature: -40℃~+85℃, (LCD temperature range: -20℃~+70℃);

boundary dimension: ￠44mm;

refresh rate distance: 33mm;

mechanical vibration proofing: 10～60HZ, 0.21mm sine wave;

radio-frequency interference proofing: IEC61000-4-3, 20V/M, 80～1000MHZ
